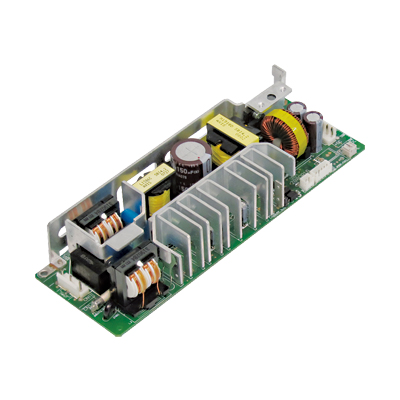

OZP-170-24-J00
Stocked product Inquiry / Quotations
Highly Efficient +24V Single Output Power Supply(Nylon connector type)
 OZP-170-24-J00 • Double-sided PWBs with through-holes suitable for industrial use(Other companies typically use single-sided PWBs.)
• Output adjustable resistor equipped
• UL60950, CSA60950 acquired
•Higher power by more than 10% with the same volume than competitors
•Peak power up to 1.8 times as much as rated power
Continuous
168W
Peak
300W
Output specification
Output specification ,Continuous 168W,Peak Capacity 300W
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 73Wx40Hx222D
Weight 0.50 kg typ
Input Voltage AC 85-264V
Efficiency AC 83% typical at AC 100V/86% typical at AC 200V
Power factor 99% typical at AC 100V/90% typical at AC 200V
Input changeover system Worldwide
Safety Approved for UL60950-1, CSA60950-1
High frequency current regulation EC61000-3-2 (ed.2.1) class D EN61000-3-2 (A14) class D compliant
EMI standard
(Input feedback noise)
VCCI-B FCC-B CISPR22-B and EN55022-B compliant
CE marking
EMS immunity Electrostatic discharge: EN61000-4-2 compliant
Radiated, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips and fluctuation: EN61000-4-11 compliant
MTBF 268,000H
Operating temperature -10 to 60 deg C, -10 to 70 deg C with forced air cooling
Leakage current 0.75mA max.
Cooling systems Air-cooling without blower
Insulation
Output ground connection Capacitor ground
Warranty Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.
Accessory (Optional)
WH-02XH02XH-500 RC Signal Harness
WH-05XH05XH-500 Signal Harness
WH-C05VH-800 Input Harness
WH-C05VH-800-01 Input Harness (Ferrite Core equipped)
WH-C08VH-500 Output Harness
