UZP-220-18-JBE
Stocked product Inquiry / Quotations

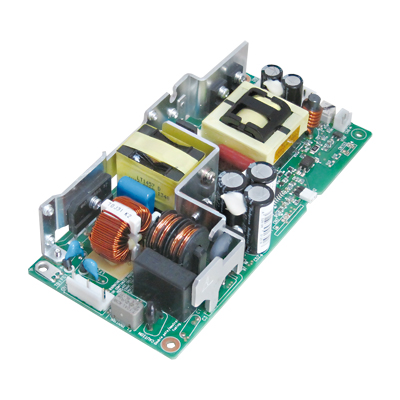

High efficiency/Advanced type PCB Type AC-DC Switching Mode Ultra-Power Supply(+18V output Nylon connector type)
 UZP-220-18-JBE high efficiency 93.5% at AC 200V
Reducing temperature rise with high efficiency
400.8W high peak power
Standby power consumption much lower thanErP directive Lot6
The output voltage adjustment with potentiometer.
Continuous
180W
Peak
401.4W
Output specification
Output specification ,Continuous 180W,Peak Capacity 401.4W
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 75Wx36Hx160D
Weight 0.31 kg typ
Input Voltage AC 85-264V
Efficiency AC 90% typ(AC100V)/92% typ(AC200V)
Power factor 99% typ(AC100V)/90% typ(AC200V)
Input changeover system Worldwide
Safety UL60950-1, CSA60950-1(c-UL),CCC S&E,
CE marking(OEC62368-1) Compliant
High frequency current regulation IEC61000-3-2 (ed.2.1) class D EN61000-3-2 (A14) class D compliant
EMI standard
(Input feedback noise)
VCCI-B FCC-B CISPR22-B EN55022-B compliant
CE marking Low voltage and EMI directive
EMS immunity Electrostatic discharge: EN61000-4-2 compliant
Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips and fluctuation: EN61000-4-11 compliant
MTBF
Operating temperature -10 to 70 deg.C
Leakage current 0.06mA typ (AC100V)/0.12mA typ(AC200V)
Cooling systems Air-cooling without blower
Insulation
Output ground connection Capacitor ground
Warranty Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.
Compatible battery pack (Separately sold):When each icon is clicked, corresponding description is displayed.
Lead uncomplianceNickel Metal Hydride compliance Lithium Ion uncomplianceCapacitor compliance
BS28A-H350/2.5L Status outputs (remaining capacity/battery life notification)
available for the battery package
CB03A-EC400/801F A trouble concerning a countermeasure against instantaneous power failure is solved! Capacitor backup unit.
Accessory (Optional)
WH-02VH02VH-250 Battery Connection Harness (power harness)
WH-03XH04XH-115 Connection harness for CB03A series
WH-09ELP04XH-200 Connect the battery package,BS28A-H350/2.5L and UZP-220 Series
WH-C05VH-800 Input Harness
WH-C05VH-800-01 Input Harness (Ferrite Core equipped)
WH-C08VH-500 Output Harness
Download Product and Technical Information
Instruction Manual Test data Product catalogue product specification
