| Compatible case size |
Other |
| Outline drawing |
128Wx82Hx250D |
| Weight |
2.6 kg typ |
|
AC |
85-264V |
|
AC |
87% min. (100 VAC), 91% min. (240 VAC) |
|
94% min. (100 VAC), 90% min. (240 VAC) |
|
Worldwide |
|
UL60950-1,CSA22.2 No60950-1(c-UL) |
|
IEC61000-3-2 (Ver.2.1) Class A compliant |
|
VCCI-B,FCC-B,EN55022-B,CISPR22-B compliant |
|
 |
|
Electrostatic discharge: EN61000-4-2 compliant
Radiated,radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips/regulations: EN61000-4-11 compliant |
|
70,000H min |
|
-10 to 60 deg.C |
|
0.5mA max. (100 VAC) / 1.0mA max. (240 VAC) |
|
Forced air cooling |
|
AC input - DC output: 3000 VAC for 1 minute / AC input - FG: 2000 VAC for 1 minute |
|
Capacitor grounding |
|
3 years after delivery. If any faults belong to us, the defective unit shall be repaired or replaced at our cost. |

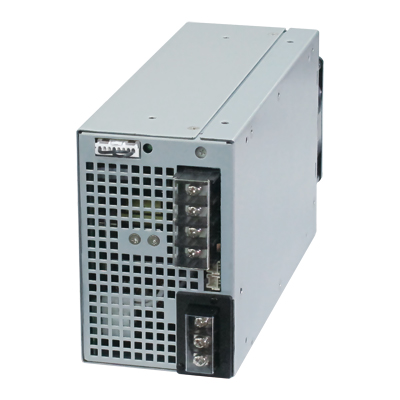

AC-DC Converter
