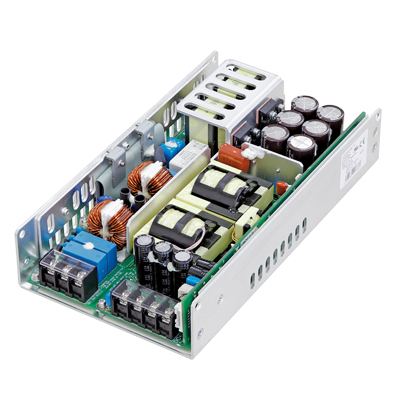

UZP-600-A24-TV0
New Product Stocked product Inquiry / Quotations
Fanless power supply unit supporting
the peak power of 1200W(Vertical terminal block type)
 UZP-600-A24-TV0 peak power of 1200W
high level of efficiency 95%typ
The built-in arrestor to avoid/mitigate the risk of lightning damage
Comes with a +12V standby output
With a +12V output (optional) linked withthe remote ON/OFF for the fan
Instantaneous power failures can be addressedby connecting a capacitor unit
Blackout detection signal and remote ON/OFFfeature incorporated
Models certified for medical standardswill also be added
Continuous
600W
Peak
1200W

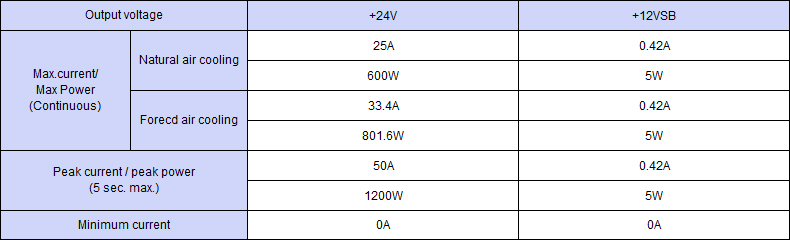

Output specification
Output specification
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 127Wx44Hx228.6D
Weight 1.3 kg typ
Input Voltage AC 85-264V
Efficiency AC 93% typ(AC115V)/95% typ(AC200V)
Power factor 98% typ(AC115V)/96% typ(AC200V)
Input changeover system Worldwide
Safety UL62368
PSE(Ordinance item 2) Compliant
CE marking
High frequency current regulation IEC61000-3-2 (ed.2.1) class D EN61000-3-2 (A14) class D compliant
EMI standard
(Input feedback noise)
VCCI/FCC/CISPR32/EN55032 Class B compliant
CE marking Low voltage and EMI directive and RoHS2.0
EMS immunity Electrostatic discharge: EN61000-4-2 compliant
Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips and fluctuation: EN61000-4-11 compliant
MTBF
Operating temperature -20 - 70deg.C(Air-cooling without blower)/-20 - 70deg.C(Forced Air Cooling)
Leakage current 0.06mA typ(AC100V),0.12mA typ(AC200V)
Cooling systems Air-cooling without blower
Insulation
Output ground connection Capacitor ground
Warranty Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.
