UZP-400-A24-JBH
Stocked product Inquiry / Quotations

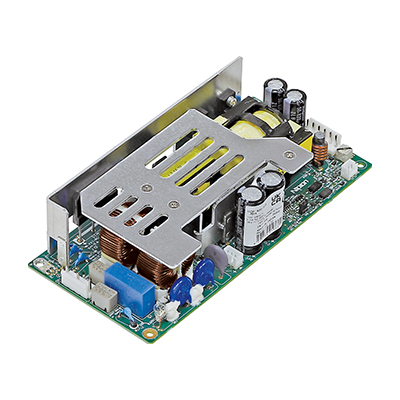

Large capacity and miniaturization Ultra-high efficiency board type +24V output switching power supply
 UZP-400-A24-JBH Backup for blackout and instantaneous power failure is available
The built-in arrestor to avoid/mitigate the risk of lightning damage
Equipped with a variable resistor to adjust output voltage
It is not necessary to provide a noise filter on the outside.
Low noise and low leakage current is also realized.
Continuous
403.2W
Peak
600W
Output specification

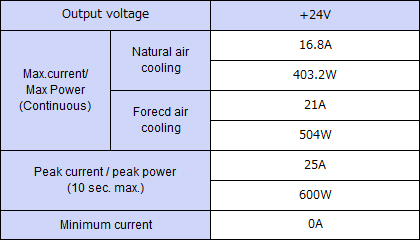

Output specification ,Continuous 403.2W,Peak Capacity 600W
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 84Wx45Hx180D
Weight 0.55 kg typ
Input Voltage AC 85-264V
Efficiency AC 92% typ(AC100V)/94% typ(AC200V)
Power factor 99% typ(AC100V)/94% typ(AC200V)
Input changeover system Worldwide
Safety UL62368-1, CSA62368-1 (c-UL) certified, CE Marking, UKCA Marking
EN62477-1, OVC III , PSE (ordinance clause 2) compliant
High frequency current regulation IEC61000-3-2 (edition 2.1) classA, EN61000-3-2 (A14) classA compliant
EMI standard
(Input feedback noise)
VCCI-B, FCC-B, CISPR32-B, EN55032-B compliant
CE marking Low Voltage Directive, EMC Directive,RoHS2.0
EMS immunity Electrostatic discharge: IEC61000-4-2 compliant
Radiate, radio frequency electromagnetic fields: IEC61000-4-3 compliant
Fast transient burst: IEC61000-4-4 compliant
Lightning surge: IEC61000-4-5 compliant
Conductive radio frequency electromagnetic fields: IEC61000-4-6 compliant
Power source frequency magnetic immunity: IEC61000-4-8 compliant
Voltage dips and fluctuation: IEC61000-4-11 compliant
MTBF
Operating temperature -10-70deg.C (at convection cooling), -10-70deg.C (at forced air cooling)
Leakage current 0.06mA typ (100VAC), 0.12mA typ (200VAC)
Cooling systems Air-cooling without blower
Insulation 3kVAC/1minute between input and output/RC,1.5kVAC/1minnute between input and FG,500VAC/1minute between each output /RC/FG
Output ground connection Capacitor grounding
Warranty Three years after delivery: If any defects belong to us, the defective unit shall be repaired or
replaced at our cost.
Compatible battery pack (Separately sold):When each icon is clicked, corresponding description is displayed.
Lead uncomplianceNickel Metal Hydride compliance Lithium Ion uncomplianceCapacitor compliance
BS28A-H350/2.5L Status outputs (remaining capacity/battery life notification)
available for the battery package
CB03A-EC400/801F A trouble concerning a countermeasure against instantaneous power failure is solved! Capacitor backup unit.
Accessory (Optional)
WH-02XH02XH-500 RC Signal Harness
WH-03XH03XH-115 Connection harness for CB03A series
WH-03XH03XH-350 Connection harness for CB03A/BS27A series
WH-09ELP03XH-200 Connect the battery package,BS28A-H350/2.5L and UZP-120 Series
WH-C05VH-800 Input Harness
WH-C05VH-800-01 Input Harness (Ferrite Core equipped)
WH-C06VH-500 Output Harness(+)
WH-C07VH-500 Output Harness(-)
Download Product and Technical Information
Instruction Manual Test data Product catalogue product specification
