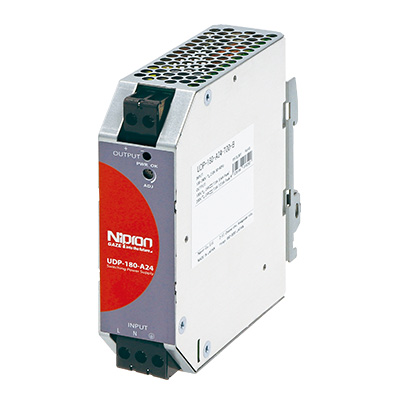

UDP-180-A24-T00-B
Stocked product Inquiry / Quotations
High efficiency 93.5%!! Output power 180W
DIN-rail compatible power supply(Block terminal type)
UDP-180-A24-T00-B It is not necessary to install an external noise filter because of low noise(supports VCCI Class B).
It is easy to install multiple power supplies because of low conducted emission.
The built-in arrestor to avoid/mitigate the risk of lightning damage
Available to start-up at -40 deg environment
The PCB is coated as standard specification
Equipped with a variable resistor to adjust output voltageA model with a service life timer will be added.
Continuous
180W
 Peak
300W

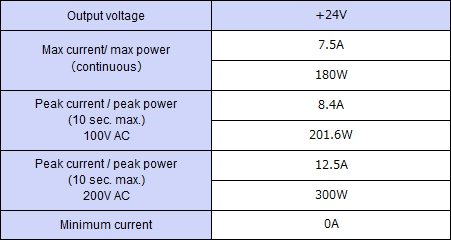

Output specification
Output specification ,Continuous 180W,Peak Capacity 300W
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 35Wx124Hx117.5D
Weight 0.52 kg typ
Input Voltage AC 85-264V
Efficiency AC 91.5% typ(AC100V)/93.5% typ(AC230V)
Power factor 99% typ at 100VAC/93% typ at 230VAC
Input changeover system Worldwide
Safety UL62368-1, CSA62368-1 (c-UL), UL508 compliant, PSE (Ordinance item 2) compliant
High frequency current regulation IEC61000-3-2 (edition 2.1) classA, EN61000-3-2 (A14) classA compliant
EMI standard
(Input feedback noise)		 VCCI-B, FCC-B, CISPR22-B, EN55022-B compliant
CE marking
EMS immunity Electrostatic discharge: IEC61000-4-2 compliant
Radiate, radio frequency electromagnetic fields: IEC61000-4-3 compliant
Fast transient burst: IEC61000-4-4 compliant
Lightning surge: IEC61000-4-5 compliant
Conductive radio frequency electromagnetic fields: IEC61000-4-6 compliant
Power source frequency magnetic immunity: IEC61000-4-8 compliant
Voltage dips and fluctuation: IEC61000-4-11 compliant
MTBF
Operating temperature 20 to 70°C (available to start-up at -40°C)
Leakage current 0.12mA typ (100VAC)/0.24mA typ (200VAC)
Cooling systems Air-cooling without blower
Insulation 1.5kVAC/1minute between input and output,1.5kVAC/1minute between input and FG,500VAC/1minute between each output/FG
Output ground connection Capacitor grounding
Warranty Three years after delivery: If the defect is our responsibility, the defective unit shall be repaired or replaced at our cost.
