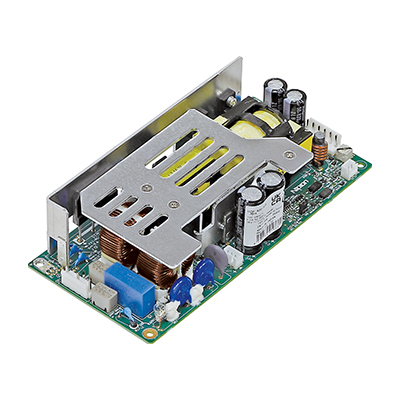

UZP-400/1200P-A30-J0H
New Product Stocked product Inquiry / Quotations
+30V output with 1200W peak power
 UZP-400/1200P-A30-J0H Able to peak output max. three times the continuous power.
The built-in arrestor to avoid/mitigate the risk of lightning damage
Equipped with a variable resistor to adjust output voltage
It is not necessary to provide a noise filter on the outside. Low noise and low leakage current is also realized.
Continuous
402W
Peak
1200W

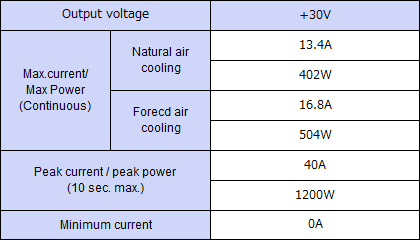

Output specification
Output specification ,Continuous 402W,Peak Capacity 1200W
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 84Wx45Hx180D
Weight 0.55 kg typ
Input Voltage AC 170-264V
Efficiency AC 94% typ(200VAC)
Power factor 96% typ(200VAC)
Input changeover system
Safety UL62368-1, CSA62368-1 (c-UL) certified, CE Marking, UKCA Marking
EN62477-1, OVC III , PSE (ordinance clause 2) compliant
High frequency current regulation IEC61000-3-2 (edition 2.1) classA, EN61000-3-2 (A14) classA compliant
EMI standard
(Input feedback noise)
VCCI-B, FCC-B, CISPR32-B, EN55032-B compliant
CE marking Low Voltage Directive, EMC Directive,RoHS2.0
EMS immunity Electrostatic discharge: IEC61000-4-2 compliant
Radiate, radio frequency electromagnetic fields: IEC61000-4-3 compliant
Fast transient burst: IEC61000-4-4 compliant
Lightning surge: IEC61000-4-5 compliant
Conductive radio frequency electromagnetic fields: IEC61000-4-6 compliant
Power source frequency magnetic immunity: IEC61000-4-8 compliant
Voltage dips and fluctuation: IEC61000-4-11 compliant
MTBF
Operating temperature -10-70deg.C (at convection cooling), -10-70deg.C (at forced air cooling)
Leakage current 0.12mA typ(200VAC)
Cooling systems Air-cooling without blower
Insulation 1.5kVAC/1minute between input and output/RC,1.5kVAC/1minute between input and output/RC,500VAC/1minute between each output /RC/FG
Output ground connection Capacitor grounding
Warranty Three years after delivery: If any defects belong to us, the defective unit shall be repaired or
replaced at our cost.
Accessory (Optional)
WH-02XH02XH-500 RC Signal Harness
WH-C05VH-800 Input Harness
WH-C05VH-800-01 Input Harness (Ferrite Core equipped)
WH-C06VH-500 Output Harness(+)
WH-C07VH-500 Output Harness(-)
