Small size 15W general purpose power supply (3.3V output with chassis)
 OZ-015-3R3-J00-C - Double-sided PWBs with through holes suitable for industrial use (Other companies typically use single-sided PWBs.)
- Equipped with a variable resistor to adjust output voltage
- UL60950, CSA60950, EN60950, EN50178 approved
- High efficiency with synchronous rectifying system for all models in the series.
(Note 1) Safety standard is not approved for current stock. Please contact us for approved product.
(Note 2) Ready for shipment basically, because board type power supplies, chassis, and covers are available as standard stock. Please contact us for detail.

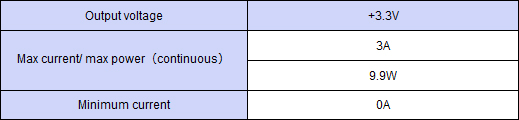

Output specification
Output specification
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 57Wx35Hx125D
Weight 0.19 kg typ
Input Voltage AC 85-264V
Efficiency AC 73% typ (AC100V)/74% typ (AC240V)
Power factor
Input changeover system Worldwide
Safety UL60950-1, CSA60950-1, EN60950-1, and CE Marking approved. Electrical Appliance and Material Safety Law compliant
High frequency current regulation
EMI standard
(Input feedback noise)
VCCI-B FCC-B CISPR22-B EN55022-B compliant
CE marking Low voltage directive
EMS immunity "Electrostatic discharge: EN61000-4-2 compliant
Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips and fluctuation: EN61000-4-11 compliant"
MTBF 350,000H
Operating temperature -10 to 65 deg C, -10 to 70 deg C with forced air cooling
Leakage current 0.5mA max (AC100V), 1mA max (AC200V)
Cooling systems Air-cooling without blower
Insulation AC1500V/min between AC input and FG/DC output 50 ohm min between AC input and DC output/FG and between DC output and FG
Output ground connection Capacitor ground
Warranty Three years after delivery
Accessory (Optional)
WH-C04XH-800 Output harness for OZ-015 series
WH-C05VH-800 Input Harness
WH-C05VH-800-01 Input Harness (Ferrite Core equipped)
