OZ-030-15-J00
Stocked product Inquiry / Quotations

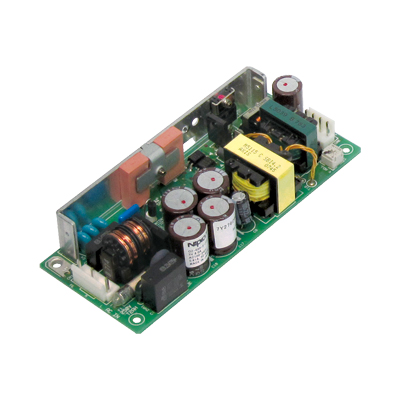

Compact 30W General-purpose Power Supply(15V output)
 OZ-030-15-J00 • Double-sided PWBs with through-holes suitable for industrial use(Other companies typically use single-sided PWBs.)
• Equipped with a variable resistor to adjust output voltage
• UL60950, CSA60950, EN60950 acquired
• High efficiency with synchronous rectifying system
Continuous
30W
Peak

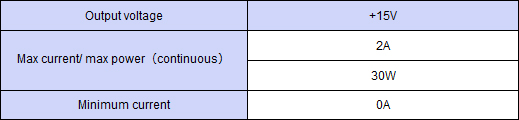

Output specification
Output specification ,Continuous 30W
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 55Wx28Hx133D
Weight 0.18 kg typ
Input Voltage AC 85-264V
Efficiency AC 80% typical at AC 100V/80% typical at AC 240V
Power factor
Input changeover system Worldwide
Safety Approved for UL60950-1, CSA60950-1, EN60950-1, and CE Marking, and also Electrical Appliance and Material Safety Law compliant
High frequency current regulation
EMI standard
(Input feedback noise)
VCCI-B FCC-B CISPR22-B and N55022-B compliant
CE marking Low Voltage Directive
EMS immunity Electrostatic discharge: EN61000-4-2 compliant
Radiated radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips/regulations: EN61000-4-11 compliant
MTBF 250,000H
Operating temperature -10 to 60 deg C.
Leakage current 0.5mA max(AC100V)/1mA max(AC240V)
Cooling systems Air-cooling without blower
Insulation AC1500V/min between AC input and FG/DC output 50 ohm min between AC input and DC output/FG and between DC output and FG
Output ground connection Capacitor ground
Warranty Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.
Accessory (Optional)
WH-C04VH-800 Output harness for OZ-030/060/FZP-040 series
WH-C05VH-800 Input Harness
WH-C05VH-800-01 Input Harness (Ferrite Core equipped)
