GPSA-360-12-TP
Power supply encyclopedia
GPSA-360-12-TP
Stocked product Inquiry / Quotations

12V/30A (360W) Single Output Power Supply

12V/30A (360W) Single Output Power Supply

- Simple design as a low-price industrial power supply
- 1U wide and 3U high - rack mount design
- Remote ON-OFF with external signal
- +12VSB output equipped

continuation maximum capacity
360W
peak capacity
408W

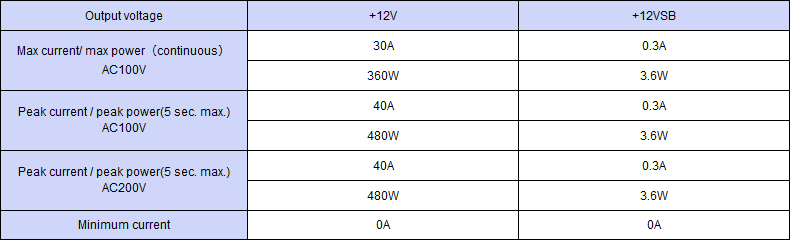

Output specification
Output specification
Standard, specifications: For standard and specifications, click each item.
Compatible case size
Outline drawing 41Wx128Hx230D
Weight 1.40 kg typ
Input Voltage AC 85 to 264V (load derating: 100% at 90V/90% at 85V)
Efficiency AC 80% typical at AC 100V/83% typical at AC 200V
Power factor 96% min. at AC 100V/90% min. at AC 200V
Input changeover system Worldwide
Safety UL60950-1, CSA60950-1(c-UL), and CE Marking
High frequency current regulation IEC61000-3-2 (Ed. 2.1) Class D and EN61000-3-2(A14)Class D compliant
EMI standard
(Input feedback noise)
VCCI-B FCC-B EN55022-B and CISPR22-B compliant
CE marking Low Voltage Directive (scheduled for acquisiton)
EMS immunity Electrostatic discharge: EN61000-4-2 compliant
Radiated,radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips/regulations: EN61000-4-11 compliant
MTBF 70,000H min
Operating temperature -10 to 60 deg C (load derating: 100% at 40 deg C, 60% at 60 deg C)
Leakage current 0.21mA max. at AC 100V, 0.5mA max. at AC 240V
Cooling systems
Insulation AC4000V/min between AC input and DC output AC2000V/min between AC input and FG
Output ground connection AC4000V/min between AC input and DC output AC2000V/min between AC input and FG
Warranty Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.
Accessory (Optional)
WH-08XA08XA-500 Signal Harness
Download Product and Technical Information
Instruction Manual Test data Product catalogue product specification
