FZP-040-24-JBH
Stocked product Inquiry / Quotations
Small size and high efficiency
PCB type single output power supply(24V38.4W Output type/A variable resistor for adjusting output voltage can be supported)

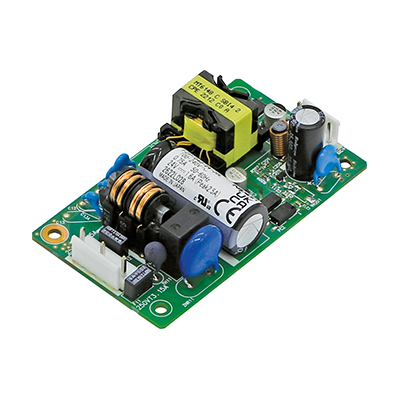

 FZP-040-24-JBH Achieved miniaturization and large capacity
Support the peak load
Achieved high efficiency and low-heat-generation
Double-sided through-hole printed circuit board adopted
Continuous
38.4W
Peak
60W

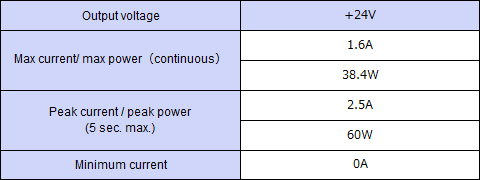

Output specification
Output specification ,Continuous 38.4W,Peak Capacity 60W
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 50Wx26Hx87.5D
Weight 0.07 kg typ
Input Voltage AC 85-264V
Efficiency AC 91% typ(AC100V)/92% typ(AC240V)
Power factor
Input changeover system Worldwide
Safety IEC/EN62368-1(2nd), (CE marking)
UL/c-UL62368-1(2nd) expected to be approved
High frequency current regulation
EMI standard
(Input feedback noise)
Electrostatic discharge: EN61000-4-2 compliant
Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips and fluctuation: EN61000-4-11 compliant
CE marking Low voltage and RoHS2.0
EMS immunity
MTBF
Operating temperature -10 to 70 deg.C
Leakage current 0.2mA typ (AC100V)/0.5mA typ(AC264V)
Cooling systems Forced air cooling (Need external fan)
Insulation 4kVAC/1minute between input and output,2kVAC/1minute between input and FG,2kVAC/1minute between each output/FG
Output ground connection Capacitor grounding
Warranty Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.
Accessory (Optional)
WH-C04VH-800 Output harness for OZ-030/060/FZP-040 series
WH-C05VH-800 Input Harness
WH-C05VH-800-01 Input Harness (Ferrite Core equipped)
