GPSA-750-12-TP
Power supply encyclopedia
GPSA-750-12-TP
Stocked product Inquiry / Quotations

12V/56A(672W)Single Output Power Supply

12V/56A(672W)Single Output Power Supply

• Simple design as a low-price industrial power supply
• 2U wide and 3U high - rack mount design
• Remote ON-OFF with external signal
• +12VSB output equipped

continuation maximum capacity
672W
peak capacity
840W

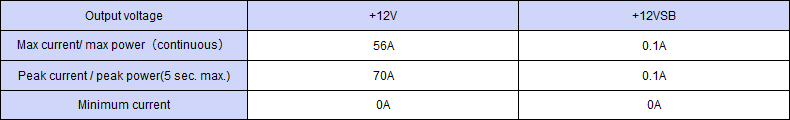

Output specification
Output specification
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 82Wx128Hx235D
Weight 2.30 kg typ
Input Voltage AC 85 to 264V (load derating: 100% at 90V/90% at 85V)
Efficiency AC 81% typical at AC 100V/84% typical at AC 200V
Power factor 96% min. at AC 100V/90% min. at AC 200V
Input changeover system Worldwide
Safety
High frequency current regulation IEC61000-3-2 (Ed. 2.1) Class D and EN61000-3-2 (A14) Class D compliant
EMI standard
(Input feedback noise)
VCCI-B FCC-B EN55022-B and CISPR22-B compliant
CE marking Low Voltage Drective (Scheduled for acquisition)
EMS immunity Electrostatic discharge: EN61000-4-2 compliant
Radiated, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips/regulations:EN61000-4-11 compliant
MTBF 70,000H min
Operating temperature -10 to 60 deg C (load derating: 100% at 40 deg C, 60% at 60 deg C)
Leakage current 0.21mA max. at AC 100V/0.5mA max. at AC 240V
Cooling systems
Insulation
Output ground connection
Warranty Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.
Accessory (Optional)
WH-08XA08XA-500 Signal Harness
Download Product and Technical Information
Instruction Manual Test data Product catalogue product specification
