ProductUnit power supplies OZP Series

Feature

Amazing 10-year life time
Low noise
Stronger radiation strucure and Higher efficiency
Double sided PCBs with through holes
Blackout backup function (corresponding to 24V type)
Variable resistor for output voltage
Output ON/OFF control function
Selectable 12V/15V output
Selectable terminal type of Input/Output
Selectable chassis and/or cover
Other features

Amazing 10-year life time

OZP series extends its life time even longer to 10-year of lifetime expectancy for OZP-170 at the conditions below. Thus, it secures long-life at severe industrial temperature environment resulting in reduction of maintenance work.

Nipron contributes to global environmental improvement with long-life design policy (10 years and over) by decreasing industrial waste.

Life-time expectancy curve

TOP

Low noise

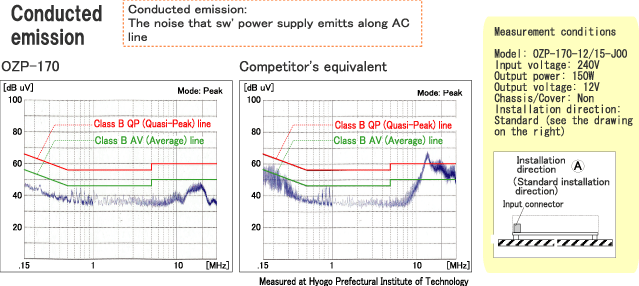

Open frame model (no chassis/cover) of OZP series is LOW NOISE power supply to satisfy VCCI Class B (Conducted emission and Radiant noise) without external noise filter.




WH-C05VH-800-01

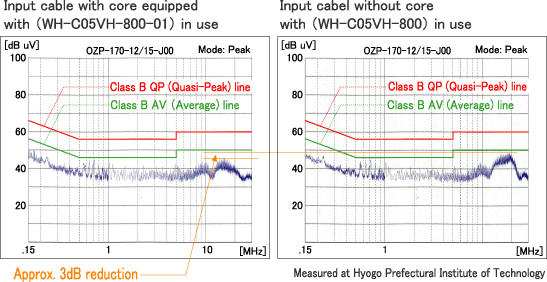

Further noise reduction with cable equipped with core;

Input cable with core equipped is ready assuming various power supply installation environments for users to easily reduce noises.
(Model name: WH-C05VH-800-01)

Noise Reduction

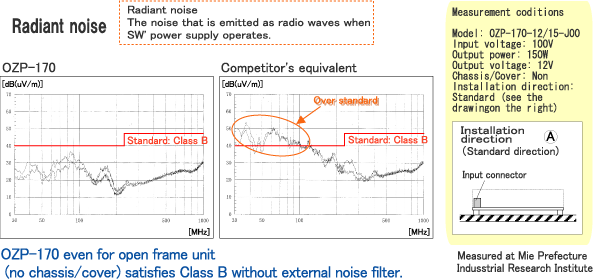

Radiant noise

TOP

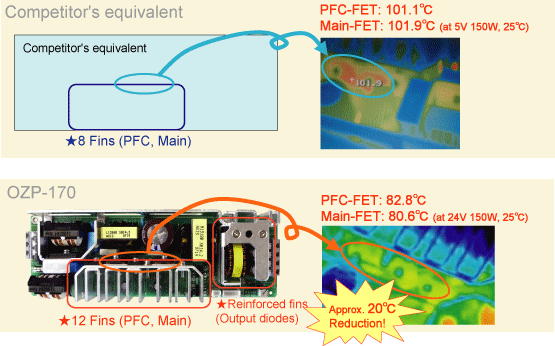

Stronger radiation structure and Higher efficiency



Stronger radiation structure than competitor's

Stronger radiation structure

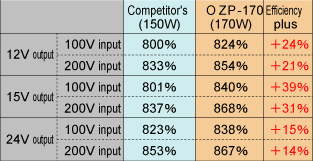

Higher efficiency than competitor's

Power loss reduction by design optimization in every section and new components adoption.

OZP-120 Series
Effeciency - OZP-120 Series

OZP-170 Series
Efficiency - OZP-170 Series

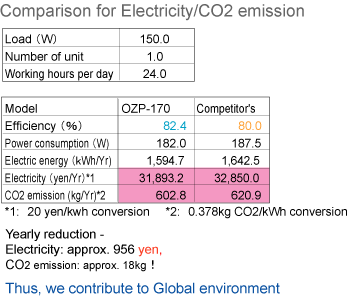

Comparison for electricity/CO2 emission

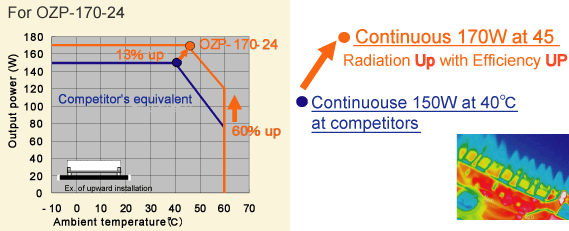

More power by 13 to 60% compared with competitor

More power by 13 to 60% compares with competitor

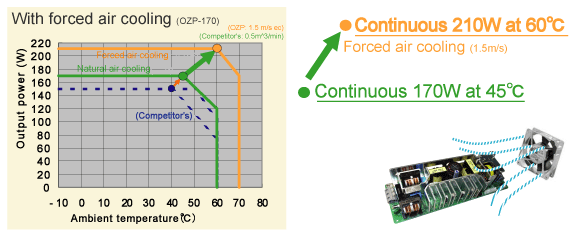

In addition, More power by forced air cooling!

More power by forced air cooling

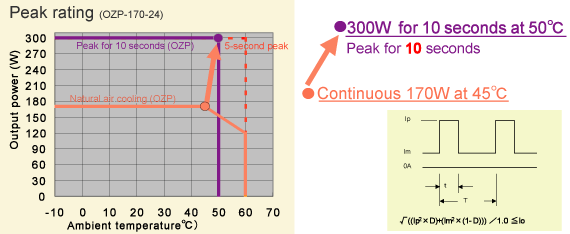

Furthermore, Peak 300W for 10 seconds!

Peak rating



TOP

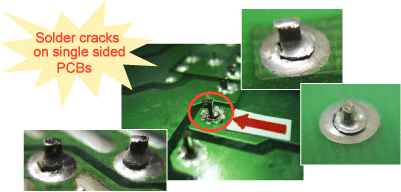

Double sided PCBs with through holes

No solder clacks even with Lead-free soldering.
When the solder clacks happen in the high voltage section of power supply, it may cause arc discharge resulting soke and fire.

No solder clacks even with Lead-free soldering

TOP

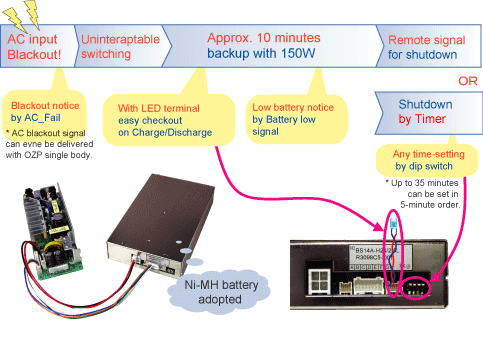

Blackout backup function (corresponding to 24V type)

Blackout backup function

TOP

Variable resistor for output voltage

Output voltage settable resistor eqyipped as standard:
More stable system operation by by line-drop compensation Settable up to approx. 29V for 24V output type and usable charging sourse for Lead-acid battery.

Variable resistor for output voltage

TOP

Output ON/OFF control function

Output ON/OFF control by remote terminal (RC signal) is available as standard.

Output ON/OFF control function

TOP

Selectable 12V/15V output (Corresponding to OZP-12/15 and OZP-170-12/15)

12V or 15V is selectable by shorting plug. Costomers can integrate systems for better control of inventories.

Selectable 12/15V output

TOP

Selectable terminal type of Input/Output

3 types of Input/Output terminals; Connecter; European terminal, and Block terminal are lined up.

Selectable terminal type of Input/Output

TOP

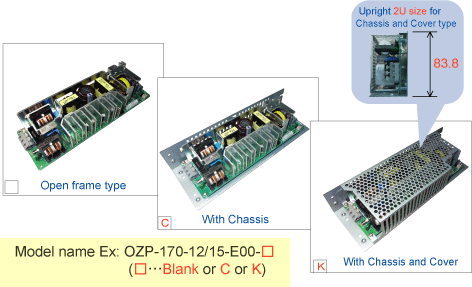

Selectable chassis and/or cover

Choice from chassis and cover;

Line up of 3 types, Open frame type, with Chassis type, and with Chassis and Cover type.

Selectable chassis and/or cover

TOP

Other features

  • All models are equipped with harmonic measures and PFC circuit.
    Actual strength against more than 4KV lightning
  • UL60950, CSA60950 and Certified.
    EN50178 Certified
    (Safety standard for electronic equipment for use in power installments)
  • RoHS Compliant
