OZP-120 Series
| Items |
Specification |
Measurements, etc. |
| Rated voltage |
AC100-240V (AC85*-264V) |
Wide range

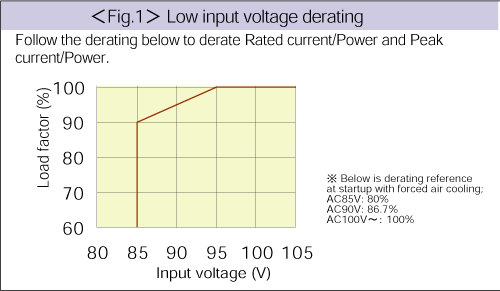

*See <Fig.>
Low input voltage derating. |
| Frequency |
50/60Hz |
Frequency range: 47-63Hz |
| Efficiency |
12V |
81% typ (at AC100V), 84% typ (at AC200V) |
at Rated input/output |
| 15V/24V |
82% typ (at AC100V), 85% typ (at AC200V) |
| Power factor |
99% typ (AC100V), 90% typ(AC200V) |
| Inrush current |
17A peak (AC100V), 34A peak (AC200V) |
at Rated input/output and cold start at 25 degrees C |
Input current
|
AC100V |
1.5A typ at 120W,
1.9A typ at 150W with forced air cooling
|
at Rated input and Max. output at 25 degrees C |
| AC200V |
0.8A typ at 120W,
1.0A typ at 150W with forced air cooling |
| Model name |
OZP-120-12/15* |
OZP-120-12/15* |
OZP-120-24 |
* Selectable output voltage (See note 1) |
Rated voltage
|
+12V |
+15V |
+24V |
|
| Rated current/power (Natural air cooling) |
10A |
8A |
5A |
|
| 120W |
120W |
120W |
| Rated current/power (Forced air cooling) |
12.5A |
10A |
6.3A |
|
| 150W |
150W |
151.2W |
| Peak current/power |
15A |
12A |
9A |
* Follow Peak
output power condition. |
| 180W* |
180W* |
216W* |
| Setup voltage at factory |
12V+-2% |
15V+-3% |
24V+-2% |
at rated 120W output |
| Voltage adjustable range |
+-10% |
-5%, +10% |
-5%, +20% |
|
| Static input fluctuation |
48mV max. |
48mV max. |
94mV max. |
|
| Static load fluctuation |
100mV max. |
100mV max. |
150mV max. |
|
| Temperature fluctuation |
0.02%/degrees C max. |
0.02%/degrees C max. |
0.02%/degrees C max. |
|
| Max. ripple voltage (mVp-p) |
0-65 degrees C |
120mV max. |
120mV max. |
120mV max. |
Connect wires to the output connector with a 10uF
electrolytic capacitor and a 0.1uF ceramic capacitor to measure
with 100Mhz oscilloscope. Lead length of the wires shall be
150mm or less. |
| -10-0 degrees C |
160mV max. |
160mV max. |
160mV max. |
| Max. spike voltage (mVp-p) |
0-65 degrees C |
150mV max. |
150mV max. |
150mV max. |
| -10-0 degrees C |
180mV max. |
180mV max. |
180mV max. |
| Overcurrent protection |
OCP point (A) |
101% min. of Peak rated current |
|
| Method |
Hold-down current limiting |
Blocking oscillation at low voltage. |
| Recovery |
Automatic recovery |
|
| Overvoltage protection |
OVP point (A)
|
13.8-16.2V |
17.3-20.3V |
30-35V |
|
| Method |
Output shutdown |
|
| Recovery |
Reclosing of AC input |
|
| Operating temperature and humidity |
Open frame
|
-10- 60 degrees C at natural air cooling, -10-70
degrees C at forced air cooling */20-90% |

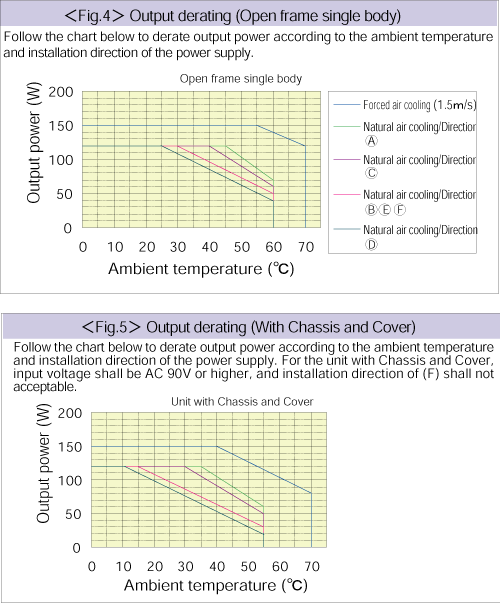

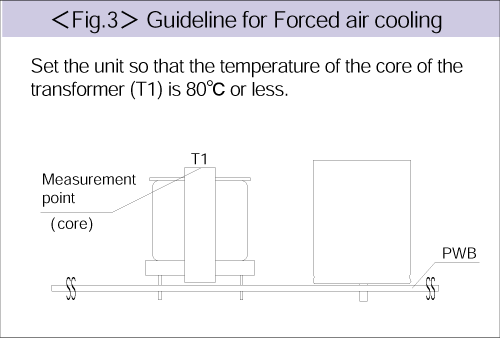

Refer to the
guideline of forced air cooling and output
derating fig.
No condensation. |
| W/T Chassis and Cover |
-10- 55 degrees Cat natural air cooling, -10-70
degrees C at forced air cooling */20-90% |
| Storage temperature and humidity |
Open frame |
-20-75 degrees C/10-95% |
No condensation |
| W/T Chassis and Cover |
-20-75 degrees C/10-95% |
| Vibration |
To endure the acceleration of 2G with vibration
frequency of 10 to 55Hz for sweep cycles in each X-, Y-, and
Z-direction. |
JIS-C-60068-2-6 at no operation |
| Mechanical strength (surface dropping) |
Lift one bottom edge of the unit up to 50mm high
with the opposite edge placed on the test bench, and let it
fall. Repeat 3 times for each of four bottom edges, and no malfunction
shall be observed. |
JIS-C-60068-2-31 at no operation |
| Dielectric strength |
AC 3kV for one minute between input and output/RC/AC
FAIL/BATT_LOW
|
Cut-off current: 10mA |
AC 2kV for one minute between Input and FG. |
Cut-off current: 110mA |
AC 500V for one minute among DC output, RC,
AC FAIL, BATT_LOW, and FG. |
Cut-off current: 1100mA |
| Insulation resistance |
50Mohm min. among AC input, DC output, RC,
AC FAIL, BATT_LOW, and FG. |
At DC500V |
| Leakage current |
0.25mA max. (AC100V), 0.5mAmax.(AC200V) |
YEW.TYPE3226 (1Kohm) or equivalent |
| Line noise immunity |
+-2000V (Pulse width: 100/1000ns, Repeated cycle
30 to 100 Hz, Normal mode/Common mode with Positive/Negative
polarity for 10 minutes.) |
to measure with INS-410. There shall be no DC component
fluctuation of output and malfunction. |
| Electrostatic discharge |
EN61000-4-2 Compliant |
|
| Radiated, radio-frequency, electromagnetic field |
EN61000-4-3 Compliant |
|
| Fast transient burst |
EN61000-4-4 Compliant |
|
Lightning
|
EN61000-4-5 Compliant |
|
| Conduct disturbances, induced by radio-frequency
field |
EN61000-4-6 Compliant |
|
| Power frequency magnetic field immunity |
EN61000-4-8 Compliant |
|
| Voltage dips and variations |
EN61000-4-11 Compliant |
|
| Conducted emission |
VCCI-B, FCC-B, CISPR22-B, EN55022-B Compliant |
at rated output 120W with single power supply (See Note 2)
|
| Harmonic current regulation |
IEC61000-3-2 (Ed. 2.1) Class DAnd EN61000-3-2
(A14) Class D Compliant |
at rated input/output |
| Safety standard |
UL60950-1, CSA60950-1 (c-UL), EN60950-1, EN50178,
CE Marking (Low voltage directive), Electrical Appliance and
Material safety Law, Items 2 compliant. |
|
| Cooling system |
Natural air cooling |
|
| Output GND grounding |
Capacitor earthing |
|
| Output holed-up time |
20ms min. |
at rated output 120W (90W output at 15V setting) |
Reliability grade
|
FA (Industrial appliance grade to use double-sided
PWBs with through holes) |
To follow our standard |
| MTBF |
268,000 H min |
To follow EIAJRCR-910 |
| Weight |
400g typ W/O chassis and cover, 650g typ W/T chassis
and cover |
|
| Warranty |
Three years after delivery. However any faults
belong to us, the defective unit shall be repaired or replaced
at our cost. |
Except causes generated by operation out of this specification.
|
Note 1: Removing short plug (CN9) makes output voltage
to 15V typical (+-3% at factory). Also it changes over-voltage detection
level to 17.3`20.3V. 12V is set at factory. When you change the voltage
to 15V, turn off the power supply in advance.
Note 2: Recommended Input cable with ferrite core: gWH-C05VH-800-01h.
TOP
OZP-170
Series
| Items |
Specification |
Measurements, etc. |
| Rated voltage |
AC100-240V (AC85*-264V) |
Wide range

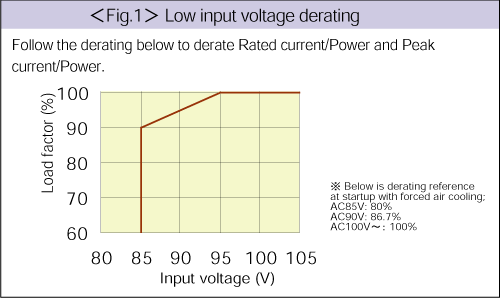

*See <Fig.>
Low input voltage derating. |
| Frequency |
50/60Hz |
Frequency range: 47-63Hz |
| Efficiency |
12V |
82% typ (at AC100V), 85% typ (at AC200V) |
at Rated input/output |
| 15V/24V |
83% typ (at AC100V), 86% typ (at AC200V) |
| Power factor |
99% typ (AC100V), 90% typ(AC200V) |
| Inrush current |
17A peak (AC100V), 34A peak (AC200V) |
at Rated input/output and cold start at 25 degrees C |
Input current
|
AC100V |
2.1A typ at 168W,
2.6 A typ at 210W with forced air cooling
|
at Rated input and Max. output at 25 degrees C |
| AC200V |
1.1A typ at 168W,
1.4A typ at 210W with forced air cooling |
| Model name |
OZP-170-12/15* |
OZP-170-12/15* |
OZP-170-24 |
* Selectable output voltage (See note 1) |
Rated voltage
|
+12V |
+15V |
+24V |
|
| Rated current/power (Natural air cooling) |
14A |
11.2A |
7A |
|
| 168W |
168W |
168W |
| Rated current/power (Forced air cooling) |
17.5A |
14A |
8.8A |
|
| 210W |
210W |
211.2W |
| Peak current/power |
22.5A |
18A |
12.5A |

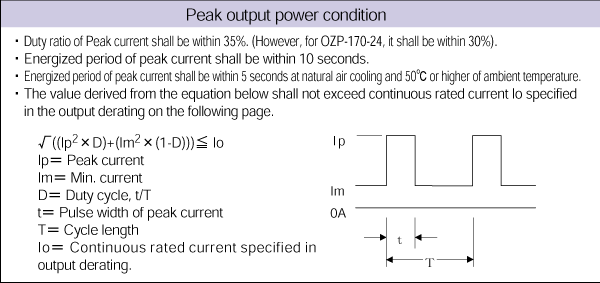

* Follow Peak
output power condition. |
| 270W* |
270W* |
300W* |
| Setup voltage at factory |
12V+-2% |
15V+-3% |
24V+-2% |
at rated 168W output |
| Voltage adjustable range |
+-10% |
-5%, +10% |
-5%, +20% |
|
| Static input fluctuation |
48mV max. |
48mV max. |
94mV max. |
|
| Static load fluctuation |
100mV max. |
100mV max. |
150mV max. |
|
| Temperature fluctuation |
0.02%/degrees C max. |
0.02%/degrees C max. |
0.02%/degrees C max. |
|
| Max. ripple voltage (mVp-p) |
0-65 degrees C |
120mV max. |
120mV max. |
120mV max. |
Connect wires to the output connector with a 10uF
electrolytic capacitor and a 0.1uF ceramic capacitor to measure
with 100Mhz oscilloscope. Lead length of the wires shall be 150mm
or less. |
| -10-0 degrees C |
160mV max. |
160mV max. |
160mV max. |
| Max. spike voltage (mVp-p) |
0-65 degrees C |
150mV max. |
150mV max. |
150mV max. |
| -10-0 degrees C |
180mV max. |
180mV max. |
180mV max. |
| Overcurrent protection |
OCP point (A) |
101% min. of Peak rated current |
|
| Method |
Hold-down current limiting |
Blocking oscillation at low voltage. |
| Recovery |
Automatic recovery |
|
| Overvoltage protection |
OVP point (A)
|
13.8-16.2V |
17.3-20.3V |
30-35V |
|
| Method |
Output shutdown |
|
| Recovery |
Reclosing of AC input |
|
| Operating temperature and humidity |
Open frame
|
-10 to 60 degrees C at natural air cooling, -10 to
70 degrees C at forced air cooling */20-90% |

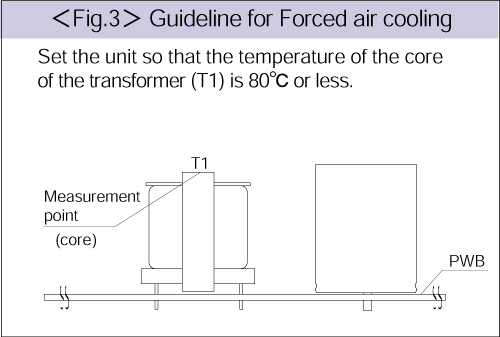

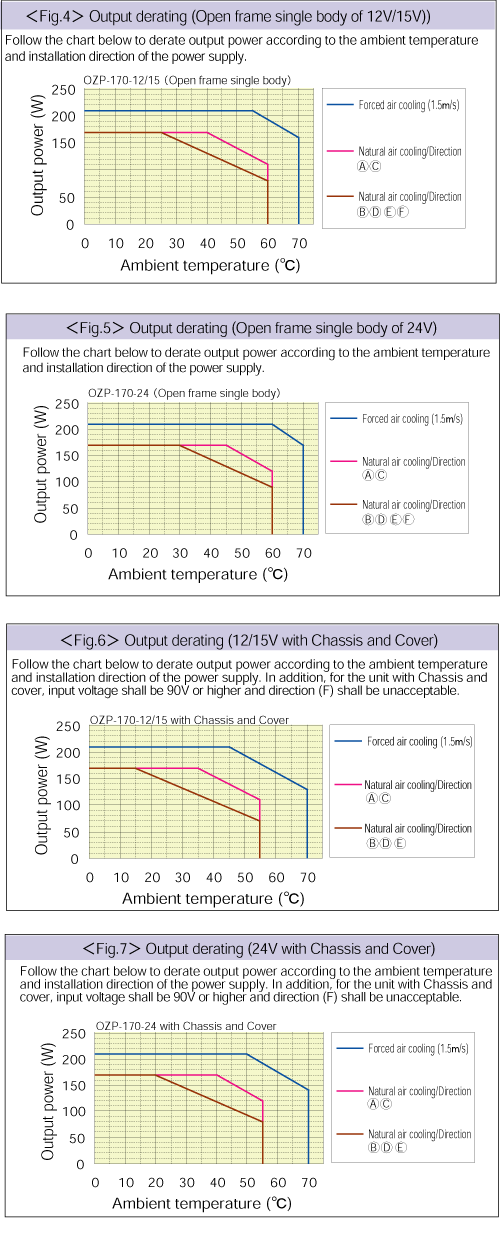

Refer to the
guideline of forced air cooling and output
derating fig.
No condensation. |
| W/T Chassis and Cover |
-10 to 55 degrees Cat natural air cooling, -10 to
70 degrees C at forced air cooling */20-90% |
| Storage temperature and humidity |
Open frame |
-20 to 75 degrees C/10-95% |
No condensation |
| W/T Chassis and Cover |
-20 to 75 degrees C/10-95% |
| Vibration |
To endure the acceleration of 2G with vibration
frequency of 10 to 55Hz for sweep cycles in each X-, Y-, and Z-direction. |
JIS-C-60068-2-6 at no operation |
| Mechanical strength (surface dropping) |
Lift one bottom edge of the unit up to 50mm high with
the opposite edge placed on the test bench, and let it fall. Repeat
3 times for each of four bottom edges, and no malfunction shall
be observed. |
JIS-C-60068-2-31 at no operation |
| Dielectric strength |
AC 3kV for one minute between input and output/RC/AC
FAIL/BATT_LOW
|
Cut-off current: 10mA |
AC 2kV for one minute between Input and FG. |
Cut-off current: 10mA |
AC 500V for one minute among DC output, RC, AC
FAIL, BATT_LOW, and FG. |
Cut-off current: 100mA |
| Insulation resistance |
50Mohm min. among AC input, DC output, RC, AC FAIL,
BATT_LOW, and FG. |
At DC500V |
| Leakage current |
0.25mA max. (AC100V), 0.5mA max.(AC200V) |
YEW.TYPE3226 (1Kohm) or equivalent |
| Line noise immunity |
+-2000V (Pulse width: 100/1000ns, Repeated cycle 30
to 100 Hz, Normal mode/Common mode with Positive/Negative polarity
for 10 minutes.) |
to measure with INS-410. There shall be no DC component fluctuation
of output and malfunction. |
| Electrostatic discharge |
EN61000-4-2 Compliant |
|
| Radiated, radio-frequency, electromagnetic field |
EN61000-4-3 Compliant |
|
| Fast transient burst |
EN61000-4-4 Compliant |
|
Lightning
|
EN61000-4-5 Compliant |
|
| Conduct disturbances, induced by radio-frequency field |
EN61000-4-6 Compliant |
|
| Power frequency magnetic field immunity |
EN61000-4-8 Compliant |
|
| Voltage dips and variations |
EN61000-4-11 Compliant |
|
| Conducted emission |
VCCI-B, FCC-B, CISPR22-B, EN55022-B Compliant |
at rated output 120W with single power supply (See note 2) |
| Harmonic current regulation |
IEC61000-3-2 (Ed. 2.1) Class D, and EN61000-3-2 (A14)
Class D Compliant |
at rated input/output |
| Safety standard |
UL60950-1, CSA60950-1 (c-UL), EN60950-1, EN50178,
CE Marking (Low voltage directive), Electrical Appliance and Material
safety Law, Items 2 compliant. |
|
| Cooling system |
Natural air cooling and external forced air cooling |
|
| Output GND grounding |
Capacitor earthing |
|
| Output holed-up time |
20ms min. |
at rated output 168W (130W output at 15V setting) |
Reliability grade
|
FA (Industrial appliance grade to use double-sided
PWBs with through holes) |
To follow our standard |
| MTBF |
268,000 H min |
To follow EIAJRCR-9102 |
| Weight |
500g typ W/O chassis and cover, 800g typ W/T chassis
and cover |
|
| Warranty |
Three years after delivery. However any faults
belong to us, the defective unit shall be repaired or replaced
at our cost. |
Except causes generated by operation out of this specification.
|
Note 1: Removing short plug (CN9) makes output voltage
to 15V typical (+-3% at factory). Also it changes over-voltage detection
level to 17.3`20.3V. 12V is set at factory. When you change the voltage
to 15V, turn off the power supply in advance.
Note 2: Recommended Input cable with ferrite core: gWH-C05VH-800-01h.
TOP
|
