HPCFX-350P-X2B
Power supply encyclopedia
About Nonstop Power Supply
HPCFX-350P-X2B
1U/2U uncomplianceCompactPCI uncomplianceVMEbus uncomplianceERP uncomplianceRedundant uncomplianceOther complianceSSI-DPS uncompliance
New Product NSP Stocked product Inquiry / Quotations

FlexATX size high efficiency Industrial Nonstop power supply

FlexATX size high efficiency Industrial Nonstop power supply

Backup function protects PCs at blackout
Conducted emission of even a single power supply unit clears VCCI Class B.
Plug-in cables for re-configuring power cables (except for the main power cable).
Minimum load current 0A for all outputs specification.
Low noise design with a temperature controlled variable-speed fan.

continuation maximum capacity
245W
peak capacity
346W
Safety UL complianceCSA complianceEN unacquisitionCE complianceCCC unacquisition
Reliability grade HFA uncomplianceFA complianceHOA uncomplianceOA uncompliance
Function :For description of function, click each icon
DC Startup uncomplianceRS232C uncomplianceTTL uncomplianceSilent complianceRoHS Directive complianceConnection compliance
PFC complianceLead-free compliance5VSBFAN uncomplianceTSFCFAN uncomplianceUSB uncompliance
Output specification
Output specification
Output connector: For description of function, click each icon
Output connector for ATX Mother Board compliance ATX 12V ver. 2.0 or later power supply with SSI power connector complianceAT motherboard output connector uncomplianceProcessor connector for ATX motherboard complianceATX Motherboard Auxiliary Connector uncomplianceProcessor Connector for SSI Motherboard compliance
PCI-Express compliancePeripheral connector complianceConnectors for FDDs complianceConnector compliant with the S-ATA (Serial ATA) standard compliance
Standard, specifications: For standard and specifications, click each item.
Compatible case size FLEXATX
Outline drawing 81.5Wx41Hx150D
Weight 0.7 kg typ
Input Voltage AC 85-264V
DC
Efficiency AC 82% typ(AC100V)/87% typ(AC200V)
DC
Power factor 96% typ(AC100V)/90% typ(AC240V)
Input changeover system Worldwide
AC, DC input
Safety UL62368,CSA62368(c-UL),CE Marking
High frequency current regulation IEC61000-3-2 (ed.2.1) class D
EMI standard
(Input feedback noise)
VCCI-B FCC-B CISPR22-B EN55022-B compliant
CE marking Low Voltage Directive, EMC Directive,RoHS2.0
EMS immunity Electrostatic discharge: EN61000-4-2 compliant
Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips and fluctuation: EN61000-4-11 compliant
MTBF
Operating temperature 0-60 deg.C
Leakage current
Cooling systems Forced air cooling
Insulation
Output ground connection
Signal unit
Warranty Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.
Automatic shutdown compatible OS:Click here for more information and installation.
WindowsXP complianceOperating on Linux complianceWindows 7 compliance
Windows 10 compliance
Compatible battery pack (Separately sold):When each icon is clicked, corresponding description is displayed.
Lead uncomplianceNickel Metal Hydride complianceNickel Cadmium uncompliance Lithium Ion uncomplianceCapacitor uncompliance

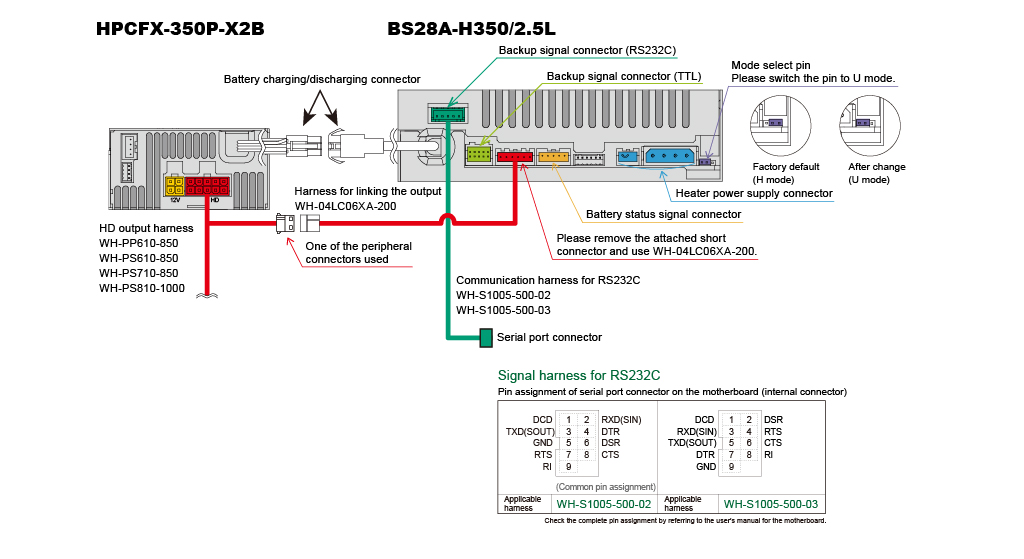

BS28A-H350/2.5L Status outputs (remaining capacity/battery life notification)
available for the battery package
Accessory (Optional)
WH-PP610-850 Peripheral Connector Harness(Peripheral*5 FDD*1)
WH-PS610-850 Peripheral Connector HarnessPeripheral Connector Harness(Peripheral*3 S-ATA*2 FDD*1)
WH-PS710-850 Peripheral Connector Harness(Peripheral*2 S-ATA*4 FDD*1)
WH-PS810-1000 Peripheral Connector Harness(S-ATA*7,Peripheral*1)
WH-V0404-500 Output harness(12V 4pin)
WH-V0804-500 Output harness(12V 8pin)
