Nipron Products OZP-200-15-JSE AC-DC Converter

OZP-200-15-JSE
			Stocked product	Inquiry / Quotations

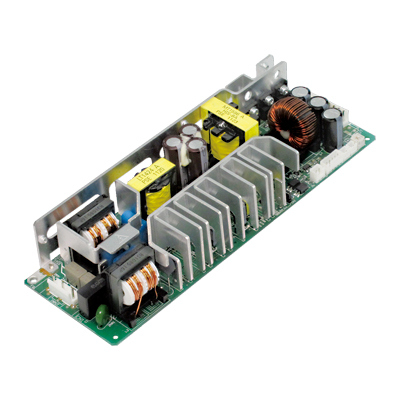

Low standby power consumption. PCB type AC-DC switch-mode power supply (+15V output, Nylon connector type)
	-High efficiency with synchronous rectifying system -longer operating life with long-lived capacitors -Parallel operation is possible -High peak power -Low-leakage current and low-noise -Blackout detection signal equipped -Medical standard approved type is also added to the lineup.
	Continuous 201W	Peak 400.5W

Output specification

Standard, specifications: For standard and specifications, click each item.

Compatible case size	Other
Outline drawing	73Wx40Hx222D
Weight	0.53 kg typ
Input Voltage	AC	85-264V
Efficiency	AC	88%typ(AC100V)/91%typ(AC240V)
Power factor	99%typ(AC100V)/95%typ(AC200V)
Input changeover system	Worldwide
Safety	UL60950-1, CSA60950-1(c-UL), and CE Marking, PSE (Ordinance item2) compliant
High frequency current regulation	IEC61000-3-2 (ed.2.1) class D EN61000-3-2 (A14) class D compliant
EMI standard (Input feedback noise)	VCCI-B FCC-B CISPR22-B EN55022-B compliant
CE marking	Low voltage and EMI directive
EMS immunity	Electrostatic discharge: EN61000-4-2 compliant Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant Fast transient burst: EN61000-4-4 compliant Lightning surge: EN61000-4-5 compliant Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant Power source frequency magnetic immunity: EN61000-4-8 compliant Voltage dips and fluctuation: EN61000-4-11 compliant
MTBF
Operating temperature	-10 to 60 deg C
Leakage current	0.09mA at Rated Load, 0.19mA at Load ratio Max 5%(AC100V) 0.17mA at Rated Load, 0.23mA at Load Ratio Max 5% (AC200V)
Cooling systems	Air-cooling without blower
Insulation	AC 3kV for one minute between Input and Output/RC/AC FAIL.AC 2kV for one minute between Input and FG.AC 500V for one minute among DC output, RC, AC FAIL, and FG.
Output ground connection	Capacitor ground
Warranty	Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.

Compatible battery pack (Separately sold):When each icon is clicked, corresponding description is displayed.

BS13A-EC400/422F	Capacitor package
CB03A-EC400/801F	A trouble concerning a countermeasure against instantaneous power failure is solved! Capacitor backup unit.

Accessory (Optional)

WH-02PH02PH-200	Signal harness for parallel operation
WH-02XH02XH-500	RC Signal Harness
WH-03ELP03XH-200	Power harness for connecting the capacitor package
WH-03XH03XH-115	Connection harness for CB03A series
WH-05XH05XH-500	Signal Harness
WH-C05VH-800	Input Harness
WH-C05VH-800-01	Input Harness (Ferrite Core equipped)
WH-C08VH-500	Output Harness
