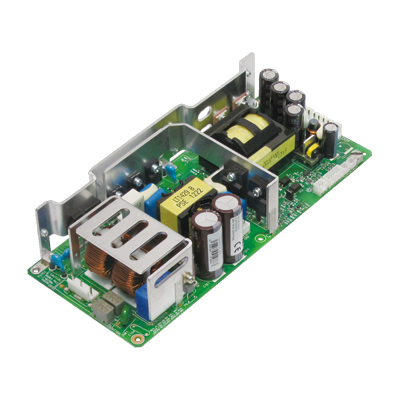

Ultra high efficiency AC-DC PCB switching PSU
(36V output, nylon connector type)
 OZP-350-36-JSE -Continuous 350W/500W, peak 600W high power.
-With ultra high efficiency and low losses, reduce CO2 emission and save energy.
-Achieving the low power consumption at standby mode (at remote OFF). (With extra 5V standby power supply board, ErP directive Lot6 complyant )
-Complying with medical standard IEC 60601-1 2nd/3rd. (Acquisition models will be added in our lineup).
-With current balancing circuit, easily parallel-operatable.
- Output voltage adjusting volume available.
-Output On/OFF control function.
-Output voltage remote sensing function.
-Noise reduction circuit.
-Low noise & Low leakage current, without external noise filter.
-Double-sided PCB with through-hole.
Output specification

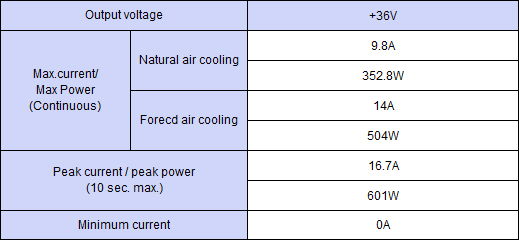

Output specification ,Continuous 352.8W,Peak Capacity 601W
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 95Wx47Hx222D
Weight 0.65 kg typ
Input Voltage AC 85-264V
Efficiency AC 92%typ(AC100V)/94%typ(AC200V)
Power factor 99%typ(AC100V)/94%typ(AC200V)
Input changeover system Worldwide
Safety UL/CSA/IEC60950-1,CE marking(IEC62368-1),ENAN(section2)
High frequency current regulation IEC61000-3-2 (ed.2.1) class D EN61000-3-2 (A14) class D compliant
EMI standard
(Input feedback noise)
VCCI-B FCC-B CISPR22-B EN55022-B compliant
CE marking Low Voltage Directive, EMC Directive
EMS immunity Electrostatic discharge: EN61000-4-2 compliant
Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips and fluctuation: EN61000-4-11 compliant
Operating temperature -10 to 60 deg C (With natural cooling)/-10 to 70 deg C (With forced air cooling)
Leakage current 0.09mA at Rated Load, 0.19mA at Load ratio Max 5%(AC100V)
0.17mA at Rated Load, 0.23mA at Load Ratio Max 5% (AC200V)
Cooling systems Air-cooling without blower
Output ground connection Capacitor ground
Warranty Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.
Compatible battery pack (Separately sold):When each icon is clicked, corresponding description is displayed.
Lead uncomplianceNickel Metal Hydride uncompliance Lithium Ion uncomplianceCapacitor compliance
BS13A-EC400/422F Capacitor package
CB03A-EC400/801F A trouble concerning a countermeasure against instantaneous power failure is solved! Capacitor backup unit.
Accessory (Optional)
WH-02PH02PH-200 Signal harness for parallel operation
WH-02VH02VH-250 Battery Connection Harness (power harness)
WH-03ELP03XH-200 Power harness for connecting
the capacitor package
WH-03XH03XH-115 Connection harness for CB03A series
WH-05XH05XH-500 Signal Harness
WH-C05VH-800 Input Harness
WH-C05VH-800-01 Input Harness (Ferrite Core equipped)
WH-C06VH-500 Output Harness(+)
WH-C07VH-500 Output Harness(-)
Download Product and Technical Information
Instruction Manual Test data Product catalogue product specification
