Medical Standard IEC60601 3rd (ANSI/AAMI ES60601-1) Approved
High Efficiency, High Peak Power, and Low Standby Power Compliant AD-DC Switching-Mode Power Supply (+12V output Nylon connector type)
 mOZP-200-12-JSE -High efficiency with synchronous rectifying system
-longer operating life with long-lived capacitors
-Parallel operation is possible
-High peak power
-Low-leakage current and low-noise
-Blackout detection signal equipped

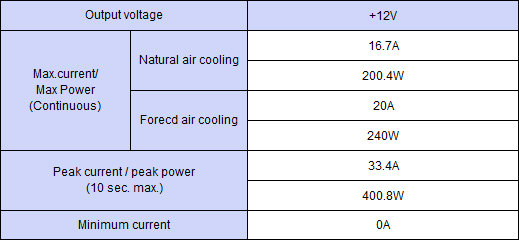

Output specification
Output specification ,Continuous 200.4W,Peak Capacity 400.8W
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 73Wx40Hx222D
Weight 0.5 kg typ
Input Voltage AC 85-264V
Efficiency AC 87%typ(AC100V)/90%typ(AC200V)
Power factor 99%typ(AC100V)/95%typ(AC200V)
Input changeover system Worldwide
Safety UL60950-1,CSA60950-1(c-UL),ANSI/AAMI ES60601-1,CAN/CSA-C22.2 No.60601-1(2008), CE marking
High frequency current regulation IEC61000-3-2 (ed.2.1) class D EN61000-3-2 (A14) class D compliant
EMI standard
(Input feedback noise)
VCCI-B FCC-B CISPR22-B EN55022-B compliant
CE marking Low voltage and EMI directive
EMS immunity Electrostatic discharge: EN61000-4-2 compliant
Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips and fluctuation: EN61000-4-11 compliant
Operating temperature -10 to 60 deg C
Leakage current 0.09mA at Rated Load, 0.19mA at Load ratio Max 5%(AC100V)
0.17mA at Rated Load, 0.23mA at Load Ratio Max 5% (AC200V)
Cooling systems Air-cooling without blower
Output ground connection Capacitor ground
Warranty Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.
Compatible battery pack (Separately sold):When each icon is clicked, corresponding description is displayed.
Lead uncomplianceNickel Metal Hydride uncompliance Lithium Ion uncomplianceCapacitor compliance
BS13A-EC400/422F Capacitor package
Accessory (Optional)
WH-02XH02XH-500 RC Signal Harness
WH-03ELP03XH-200 Power harness for connecting
the capacitor package
WH-05XH05XH-500 Signal Harness
WH-C05VH-800 Input Harness
WH-C05VH-800-01 Input Harness (Ferrite Core equipped)
WH-C08VH-500 Output Harness
Download Product and Technical Information
Instruction Manual Test data Product catalogue product specification
