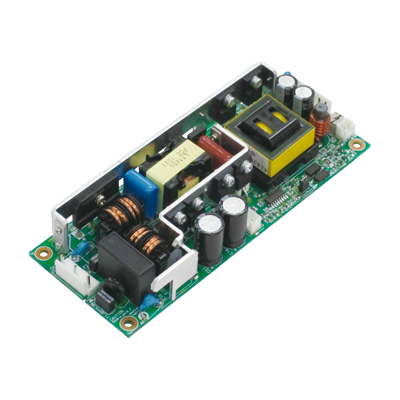

UZP-120-24-J0L
Stocked product Inquiry / Quotations
Switching power supply with minimized noise and heat (24V output lowcost type)
 UZP-120-24-J0L High Efficiency & Long Life
Low Leakage Current & Low Noise
Make Applications Smaller and Thinner
Sister Model: Medical Standard Approved Model
Continuous
120W
Peak
201.6W
Output specification
Output specification ,Continuous 120W,Peak Capacity 201.6W
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 62Wx24Hx155D
Weight 0.25 kg typ
Input Voltage AC 85-264V
Efficiency AC 90.0% typ(AC100V)/92.0% typ(AC200V)
Power factor 99% typ(AC100V)/90% typ(AC200V)
Input changeover system Worldwide
Safety UL60950-1, CSA60950-1(c-UL),
CE marking(IEC62368-1)
High frequency current regulation IEC61000-3-2 (ed.2.1) class D EN61000-3-2 (A14) class D compliant
EMI standard
(Input feedback noise)
VCCI-B FCC-B CISPR22-B EN55022-B compliant
CE marking Low Voltage Directive, EMC Directive,RoHS2.0
EMS immunity Electrostatic discharge: EN61000-4-2 compliant
Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips and fluctuation: EN61000-4-11 compliant
MTBF
Operating temperature -10 to 60 deg C (With natural cooling)/-10 to 70 deg C (With forced air cooling)
Leakage current 0.06mA typ(AC100V)/0.12mA typ(AC200V)
Cooling systems Air-cooling without blower
Insulation
Output ground connection Capacitor ground
Warranty Three years after delivery
Accessory (Optional)
WH-05XH05XH-500 Signal Harness
WH-C05VH-800 Input Harness
WH-C06VH-500-03 Output Harness for UZP-120/mUZP(T)-120 Series
Download Product and Technical Information
Instruction Manual Test data Product catalogue product specification
