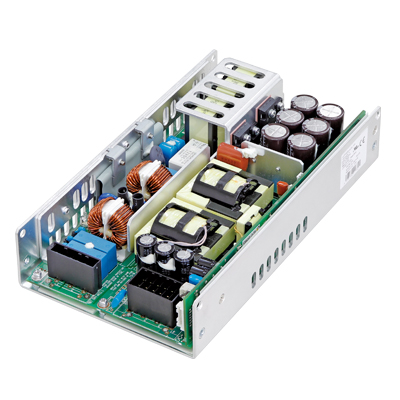

Nipron Products UZP-600-A48-JV0 AC-DC Converter

Nipron

Home

AC-DC Converter

UZP-600-A48-JV0
			Stocked product	Inquiry / Quotations

Fanless power supply unit supporting the peak power of 1200W(Vertical connector type)
	peak power of 1200W high level of efficiency 95%typ The built-in arrestor to avoid/mitigate the risk of lightning damage Comes with a +12V standby output With a +12V output (optional) linked withthe remote ON/OFF for the fan Instantaneous power failures can be addressedby connecting a capacitor unit Blackout detection signal and remote ON/OFFfeature incorporated Models certified for medical standardswill also be added
	Continuous 600W		Peak 1200W

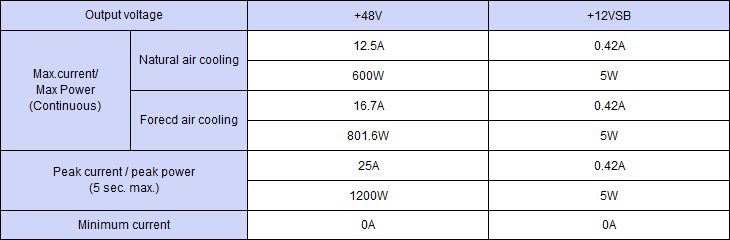

Output specification

Output specification ,Continuous 600W,Peak Capacity 1200W

Standard, specifications: For standard and specifications, click each item.

Compatible case size	Other
Outline drawing	127Wx44Hx228.6D
Weight	1.3 kg typ
Input Voltage	AC	85-264V
Efficiency	AC	93% typ(AC115V)/95% typ(AC200V)
Power factor	98% typ(AC115V)/96% typ(AC200V)
Input changeover system	Worldwide
Safety	UL62368 PSE(Ordinance item 2) Compliant CE marking
High frequency current regulation	IEC61000-3-2 (ed.2.1) class D EN61000-3-2 (A14) class D compliant
EMI standard (Input feedback noise)	VCCI/FCC/CISPR32/EN55032 Class B compliant
CE marking	Low voltage and EMI directive and RoHS2.0
EMS immunity	Electrostatic discharge: EN61000-4-2 compliant Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant Fast transient burst: EN61000-4-4 compliant Lightning surge: EN61000-4-5 compliant Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant Power source frequency magnetic immunity: EN61000-4-8 compliant Voltage dips and fluctuation: EN61000-4-11 compliant
MTBF
Operating temperature	-20 - 70deg.C(Air-cooling without blower)/-20 - 70deg.C(Forced Air Cooling)
Leakage current	0.06mA typ(AC100V),0.12mA typ(AC200V)
Cooling systems	Air-cooling without blower
Insulation
Output ground connection	Capacitor ground
Warranty	Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.
