24V DC Power Supply with 1200W Peak Power Capability |
 |
1200W high peak output power, ideal for motor loads and equipment requiring high transient power.
High-capacity output of 400W/500W continuous power.
Approximately 30% reduction in volume compared with our previous models, achieving a more compact design.
Ultra-high efficiency and low power loss contribute to energy savings and reduced thermal management requirements.
Built-in surge arrester enhances protection against lightning surges.
Equipped with a potentiometer for easy output voltage adjustment.
Meets Class B conducted noise emission requirements without an external noise filter, reducing system cost and installation workload. |
|
Continuous
403.2W |
|
Peak
1200W |
|
 |
|
|

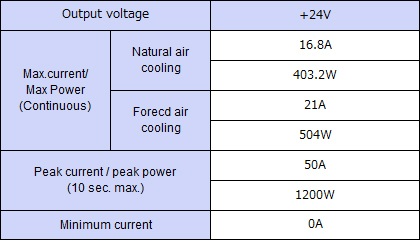

Output specification
Standard, specifications: For standard and specifications, click each item.
| Compatible case size |
Other |
| Outline drawing |
84Wx45Hx180D |
| Weight |
0.55 kg typ |
|
AC |
170-264V |
|
AC |
94% typ(200VAC) |
|
96% typ(200VAC) |
|
 |
|
UL62368-1, CSA62368-1 (c-UL) certified, CE Marking, UKCA Marking
EN62477-1, OVC III , PSE (ordinance clause 2) compliant |
|
IEC61000-3-2 (edition 2.1) classA, EN61000-3-2 (A14) classA compliant |
|
VCCI-B, FCC-B, CISPR32-B, EN55032-B compliant |
|
Low Voltage Directive, EMC Directive,RoHS2.0 |
|
Electrostatic discharge: IEC61000-4-2 compliant
Radiate, radio frequency electromagnetic fields: IEC61000-4-3 compliant
Fast transient burst: IEC61000-4-4 compliant
Lightning surge: IEC61000-4-5 compliant
Conductive radio frequency electromagnetic fields: IEC61000-4-6 compliant
Power source frequency magnetic immunity: IEC61000-4-8 compliant
Voltage dips and fluctuation: IEC61000-4-11 compliant |
|
|
|
-10-70deg.C (at convection cooling), -10-70deg.C (at forced air cooling) |
|
0.12mA typ(200VAC) |
|
Air-cooling without blower |
|
1.5kVAC/1minute between input and output/RC,1.5kVAC/1minute between input and output/RC,500VAC/1minute between each output /RC/FG |
|
Capacitor grounding |
|
Three years after delivery: If any defects belong to us, the defective unit shall be repaired or
replaced at our cost. |
