OZ-060-15-J00-K
Stocked product Inquiry / Quotations

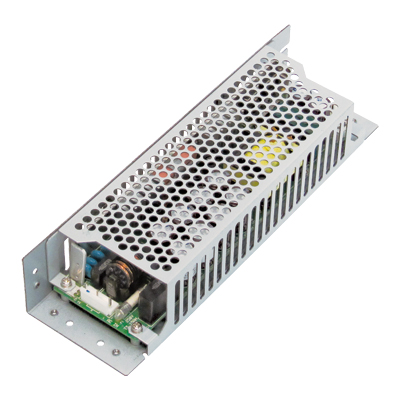

Small size 60W general purpose power supply (15V output Nylon connector type with chassis and cover)
 OZ-060-15-J00-K - Double-sided PWBs with through holes suitable for industrial use (Other companies typically use single-sided PWBs.)
- Equipped with a variable resistor to adjust output voltage
- UL60950, CSA60950 approved
- High efficiency with synchronous rectifying system for all models in the series.
Continuous
60W
Peak

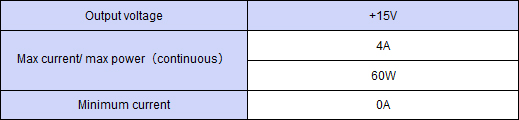

Output specification
Output specification ,Continuous 60W
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 65Wx42Hx225D
Weight 0.55 kg typ
Input Voltage AC 85-264V
Efficiency AC 82% typ (AC100V)/82% typ (AC240V)
Power factor
Input changeover system Worldwide
Safety Certified UL60950-1,CSA60950-1(c-UL),CE marking(IEC62368-1),
The Electrical Appliance and Material Safety Law (section 2) compliant
High frequency current regulation
EMI standard
(Input feedback noise)
VCCI-B FCC-B CISPR22-B EN55022-B compliant
CE marking Low voltage and EMI directive and RoHS2.0
EMS immunity "Electrostatic discharge: EN61000-4-2 compliant
Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips and fluctuation: EN61000-4-11 compliant"
MTBF 200,000H
Operating temperature -10 to 50 deg C, -10 to 60 deg C with forced air cooling
Leakage current 0.5mA max (AC100V), 1mA max (AC200V)
Cooling systems Air-cooling without blower
Insulation AC1500V/min between AC input and FG/DC output 50 ohm min between AC input and DC output/FG and between DC output and FG
Output ground connection Capacitor ground
Warranty Three years after delivery
Accessory (Optional)
WH-C04VH-800 Output harness for OZ-030/060/FZP-040 series
WH-C05VH-800 Input Harness
WH-C05VH-800-01 Input Harness (Ferrite Core equipped)
