GPSA-5000-96P-PIS
Stocked product Inquiry / Quotations

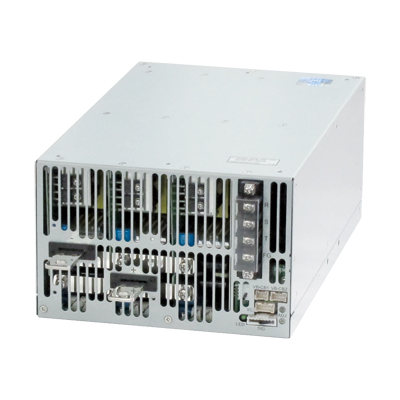

Large-capacity & high efficiency unit type AC-DC switching power supply (96V output type)
GPSA-5000-96P-PIS The use of high-efficiency circuits and the unitization of the power supply's internals have resulted in an amazing maximum efficiency of 92% typ for a large power supply.
Supports the output voltage control signal
It is possible to control the output voltage by feedingan external voltage input of 1–5 V (Vcon).
With control signal for remote ON-OFF (external signal)
Parallel operation is possible
Continuous
4992W
 Peak
6000W

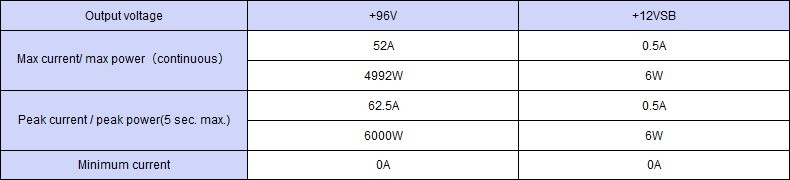

Output specification
Output specification ,Continuous 4992W,Peak Capacity 6000W
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 198Wx125Hx314D
Weight 8 kg typ
Input Voltage AC Three-phase 200-240VAC
Efficiency AC 90%typ(at AC200V)/91%typ(at AC240V)
Power factor 90%min(at 200V AC)/90%min(at 240V AC)
Input changeover system
Safety
High frequency current regulation Compliant with IEC61000-3-2 (Ed. 2.1) class A and EN61000-3-2(A14) class A
EMI standard
(Input feedback noise)		 Compliant with VCCI class B FCC Rules class B and EN55022 class B
CE marking
EMS immunity Electrostatic discharge to meet EN61000-4-2.
Lightning surge immunity to meeet EN61000-4-5
MTBF
Operating temperature -10 to 60 deg C
Leakage current 3.5mA max.at AC240V
Cooling systems Forced air cooling
Insulation
Output ground connection
Warranty Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.
Accessory (Optional)
WH-08XA08XA-500 Signal Harness
